Peerless-AV XHB5541 Mirror Control Settings

These instructions will provide a step-by-step process for inverting the display image if the content requires it.

IMPORTANT: DO NOT ADJUST ANY OTHER SETTINGS IN THE BACK MENU. DOING SO MAY PERMANENTLY DAMAGE THE DISPLAY

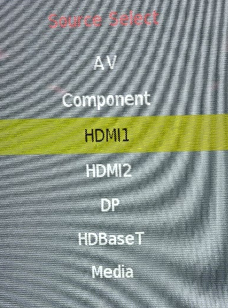

1. From an “On” power state, press the “Input” button on the remote and then “2,5,8,0” on the number pad of the remote. Note: “2,5,8,0” must be input while the “Source Select” menu is still visible on-screen.

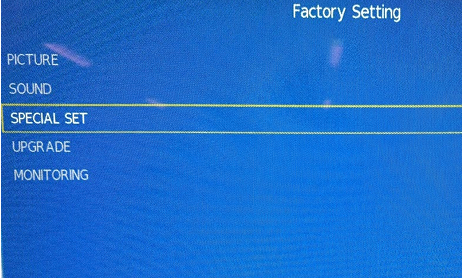

2. Use the ““Down Arrow” to navigate to “SPECIAL SET”. Press the “OK” button on the remote.

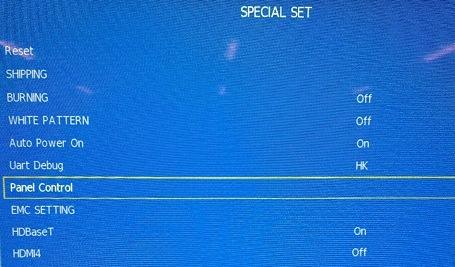

3. Use the “Down Arrow” on the remote to highlight “Panel Control”. Once it is highlighted press “OK” button on the remote. Peerless-AV XHB5541 Mirror Control Settings.

4. Use the “Down Arrow” on the remote to select “Mirror Enable”. Once “Mirror Enable” is highlighted, press the “Right Arrow” button on the remote.

5. A notification will appear on-screen. Press the “Right Arrow” button a second time to switch the “Mirror Enable” setting.

6. Once the desired “Mirror Enable” setting is selected, press the “Exit” button on the remote to hide the on-screen notification and save the setting.
